Topoint UNISON ILF Recurve Bow Riser CNC 21" 23" 25" RH LH
Premium CNC ILF Bow Riser – Precision Engineered
Tournament-ready ILF riser designed for archers who demand accuracy, durability, and style.
✔ Aerospace-Grade Material:
- 6061-T651 Aluminum – CNC-machined for perfect tolerances.
- Anodized/Camo Finish – Scratch-resistant & sleek.
✔ Ergonomic Wooden Grip:
- Hand-fitted hardwood grip for stability and comfort.
- Color-matched to the riser for a unified look.
✔ Advanced Limb Alignment System:
- Anti-loosening screws secure limbs at the perfect angle.
- Protects limb contact points for longer lifespan.
✔ Customizable Performance:
- Lengths: 21" (fast), 23" (balanced), 25" (smooth).
- Weight: Just 2.54lbs – reduces fatigue during long sessions.
- ILF Standard – Fits all ILF limbs for easy upgrades.
✔ Perfect For:
- Target Archers: Consistent shot placement.
- Hunters: Durable anodized finish withstands elements.
- Upgraders: Elevate your existing ILF setup.
Product Details:
| Attribute | Details |
|---|---|
| Product Name | Recurve Bow Riser |
| Brand | TOPOINT |
| Model | UNISON |
| Material | Aluminum CNC 6061-T651 (Machined) |
| Dexterity | Right Hand or Left Hand (Selectable) |
| Grip Material | Special Unique-Design Wooden Grip |
| Physical Weight | 2.54 lbs (≈1.15 kg) |
| Processing | Precision CNC Machining |
| Pocket Type | ILF (International Limb Fitting) |
| Brace Height | 21–22.5 cm (8.3–8.9 inches) |
| Length Options | 21" / 23" / 25" (Selectable) |
| Finish Options | Anodized (Multiple Colors) / Camo |
Package:
1x UNISON Riser (limbs/accessories sold separately).
Pro Tip: Pair with carbon arrows for maximum speed and accuracy.

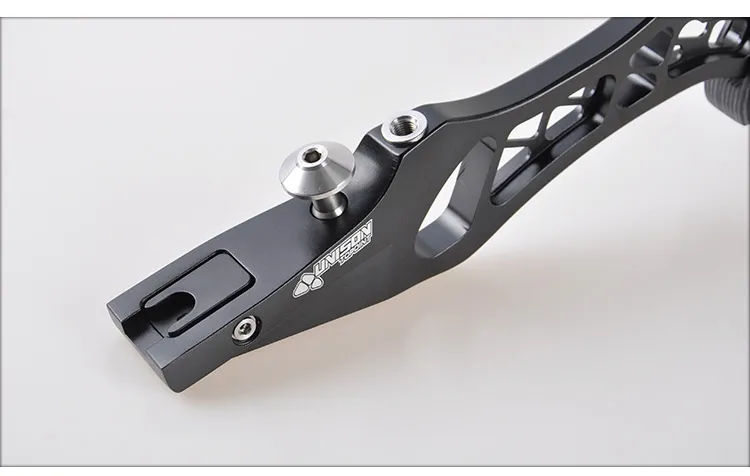

Limb Aligment
FINISH >> Anodized / Camo
Special unique designed wooden grip
| Bow length: Riser and limb fitting |
| In order to properly assemble the limbs with the riser, you will need to push the lLFdetent part from the limb into the appropriately sized slot on the riser until you hear a click. |
| TOPOINT Length ofriser | Long Limbs | Medium Limbs | Short Limbs |
| 25 inch | 70" | 68" | 66" |
| 23 inch | 68" | 66" | 64" |
| Brace height |
| Brace height is the horizontal distance between the grip and the bowstring. Changing the brace height does not affect the draw weight but can significantly affect bow performance. A higher brace height will decrease velocity while a lower brace height will increase velocity. |
| TOPOINT Length ofriser | Long Limbs | Medium Limbs | Short Limbs |
| 25 inch | 22~23.5cm | 21~22.5cm | 20.5~22cm |
| 23 inch | 21~22.5cm | 20~21.5cm | 19.5~21cm |
| Tiller and draw weight adjustability |
|

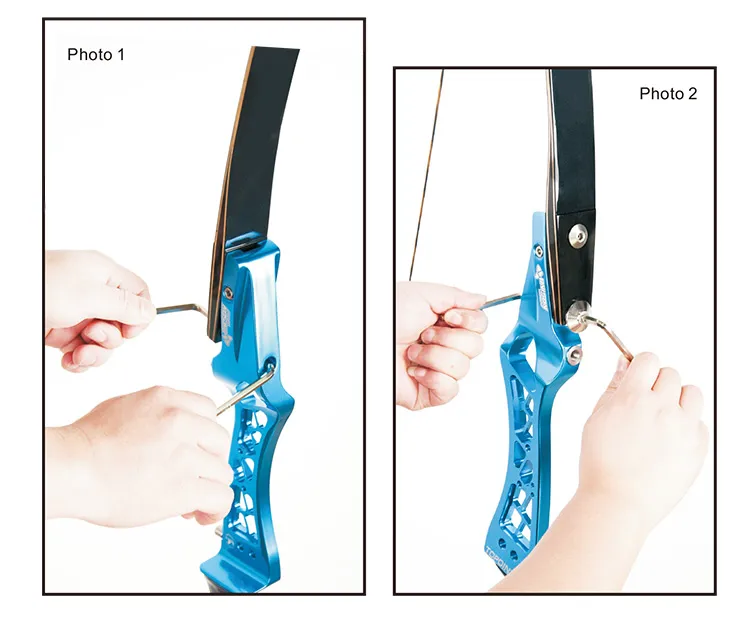

To adjust the tiller and bow weight, you first need to loosen the weight/tiller locking bolt with the Allen key (photo 1). Use the Allen key to turn the weight/tiller adjustment boltclockwise to increase bow weight and counter clockwise to decrease bow weight(photo 2). |
| Tiller and draw weight adjustability |
|
When adjusting the tillerand bow weight, do not exceed the recommended turns outfrom the maximum position (photo 3) .Maximum opening: 4 complete turns starting from closed position (photo 4). |
| Limb /riser alignment |
| Before adjusting the alignment of the riser, first check the center string position towards the riser. You can adjust the center shot without unstringing your bow.1. Unscrew both locking screws (photo 5)2. To adjust limb position to the left, loosen the inner left side bolt (photo 6) and tightenthe right sided one till the limb is centered.3. Once the limb is centered, retighten the left side bolt (photo 6)4. Fasten both locking screws (photo 5) |
Select Bow Range Table
| Archer’s Weight | Suggested Draw Weight |
| Small Children (30-45 kg.) | 10-15 lbs |
| Larger Children (45-60 kg.) | 15-25 lbs |
| Small-Frame Female (45-60 kg.) | 25-35 lbs |
| Medium-Frame Female (60-70 kg.) | 25-35 lbs |
| Small-Frame Male (55-70 kg.) | 30-45 lbs |
| Medium-Frame Male (70-80 kg.) | 40-55 lbs |
| Large-Frame Females (70+ kg.) | 30-45 lbs |
| Large Frame Men (80+ kg.) | 45-60 lbs |
Advice for Beginner Archers
1. Start with proper instruction: It is important to learn the correct form and technique from a qualified instructor. This will help you develop good habits from the beginning and prevent potential injuries.
2. Choose the right equipment: Selecting the appropriate bow and arrows that suit your physique, strength, and skill level is crucial. Consult with an experienced archer or an archery shop to ensure you have the right gear.
3. Focus on form and posture: Practice maintaining a stable stance, proper hand placement, and consistent anchor points. Developing good form early on will greatly enhance your accuracy and consistency.
4. Take it slow: Don't rush your progress in archery. Start at a comfortable distance and gradually increase as you become more confident in your abilities.
5.Practice regularly: Consistent practice is key to improving your skills in archery. Aim for regular sessions to build muscle memory, strength, and accuracy.
6.Be patient: Archery requires time and dedication to master. Don't get discouraged if progress seems slow at first; keep practicing, stay positive, and celebrate small victories along the way.
7.Safety first: Always prioritize safety when practicing or shooting arrows. Follow all safety guidelines provided by your instructor or range operator to avoid accidents or injuries.
8.Seek feedback: Request feedback from experienced archers or coaches to identify areas of improvement in your technique or equipment setup.
9.Have fun! Remember that archery is not just about hitting bullseyes; it's also about enjoying yourself while honing a new skill. Embrace the process of learning and enjoy every shot!
The above are some suggestions for archery novices, please feel free to consult Wolfman Archery for more guidance.
Arrow Selection Guide
Wolfman Archery Arrow Selection Guide
Step 1: Identify Your Draw Length
-
Measure your arm span (fingertip to fingertip) in inches and divide by 2.5.
-
Example: 70 inches arm span ÷ 2.5 = 28-inch draw length.
Step 2: Determine Draw Weight
-
Youth/Beginner: 15-30 lbs
-
Intermediate: 30-50 lbs
-
Experienced/Target Shooting: 50-70 lbs
-
Hunting: 40-70 lbs (state regulations may apply)
Step 3: Choose Arrow Spine (Stiffness)
Arrow spine ensures the arrow flexes correctly when shot. Match your draw weight and arrow length to the appropriate spine:
| Draw Weight | Arrow Length | Recommended Spine |
|---|---|---|
| 15-30 lbs | 24-28 inches | 800-1000 |
| 30-40 lbs | 26-29 inches | 600-700 |
| 40-50 lbs | 28-30 inches | 500-600 |
| 50-60 lbs | 28-31 inches | 400-500 |
| 60-70 lbs | 29-32 inches | 300-400 |
Step 4: Select Arrow Material
-
Carbon: Lightweight, durable, fast (ideal for hunting and target shooting).
-
Aluminum: Affordable, consistent, slightly heavier (good for target practice).
-
Wood: Traditional look, best for longbows and historical archery.
Step 5: Consider Arrow Weight (GPP - Grains Per Pound)
-
Target Shooting: 5-6 GPP (grains per pound of draw weight)
-
Hunting: 6-9 GPP (heavier for better penetration)
Step 6: Choose the Right Fletching
-
Plastic Vanes: Best for compound bows and outdoor shooting.
-
Feathers: Great for traditional bows and indoor shooting.
Step 7: Pick the Right Tip
-
Field Points: Practice and target shooting.
-
Broadheads: Hunting (fixed or mechanical blades).
For personalized recommendations, visit Wolfman Archery or contact our experts!
