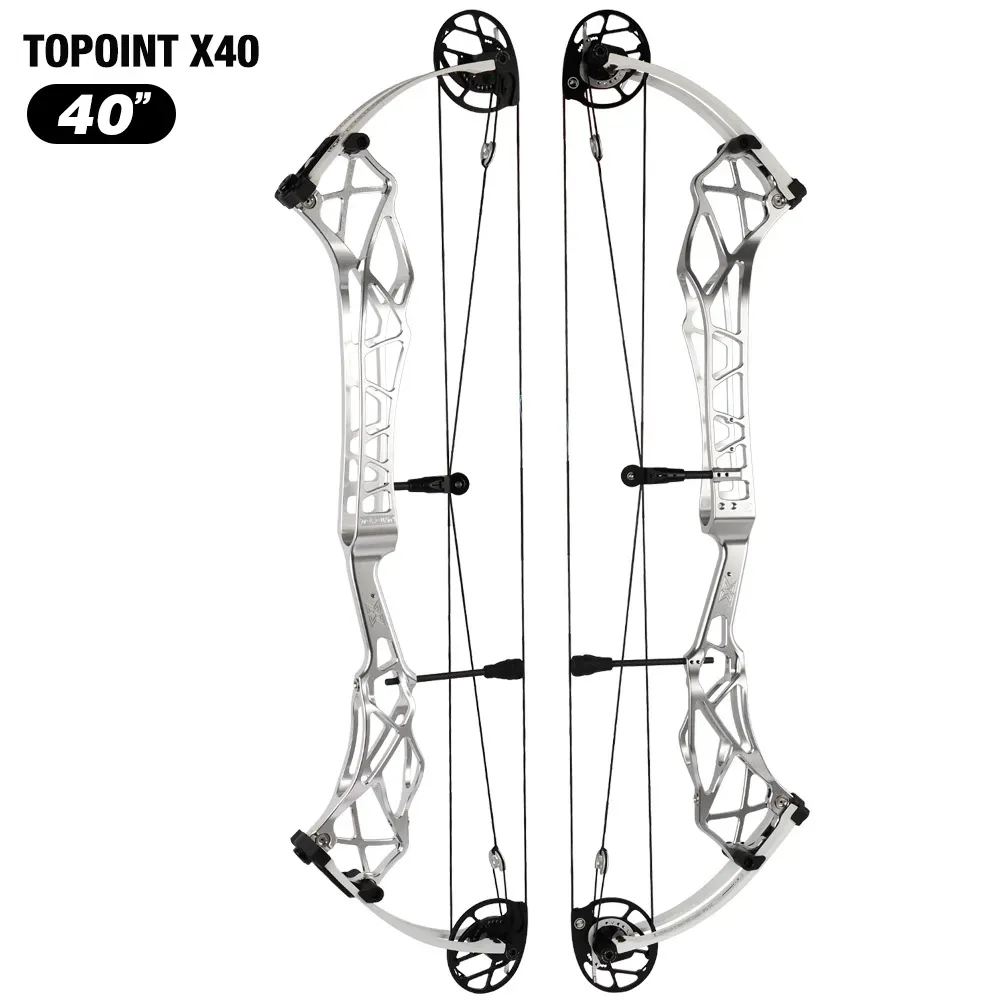

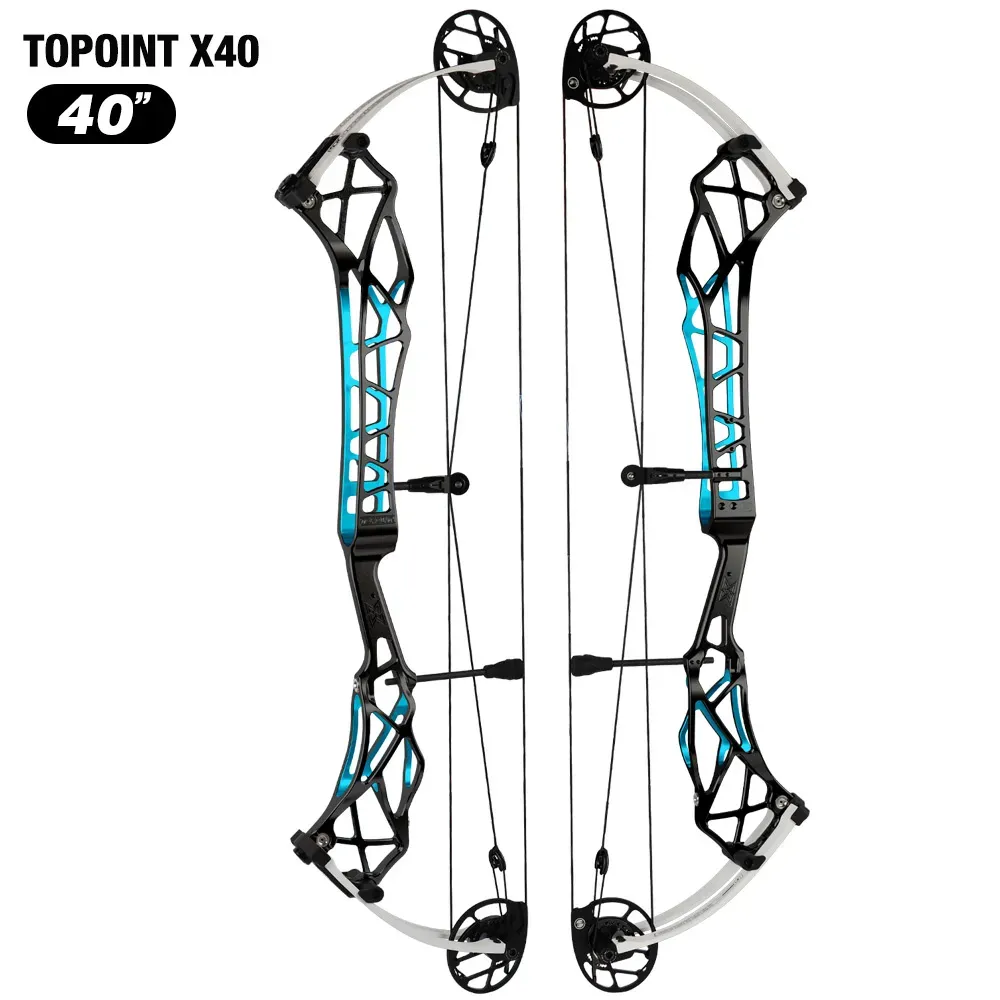

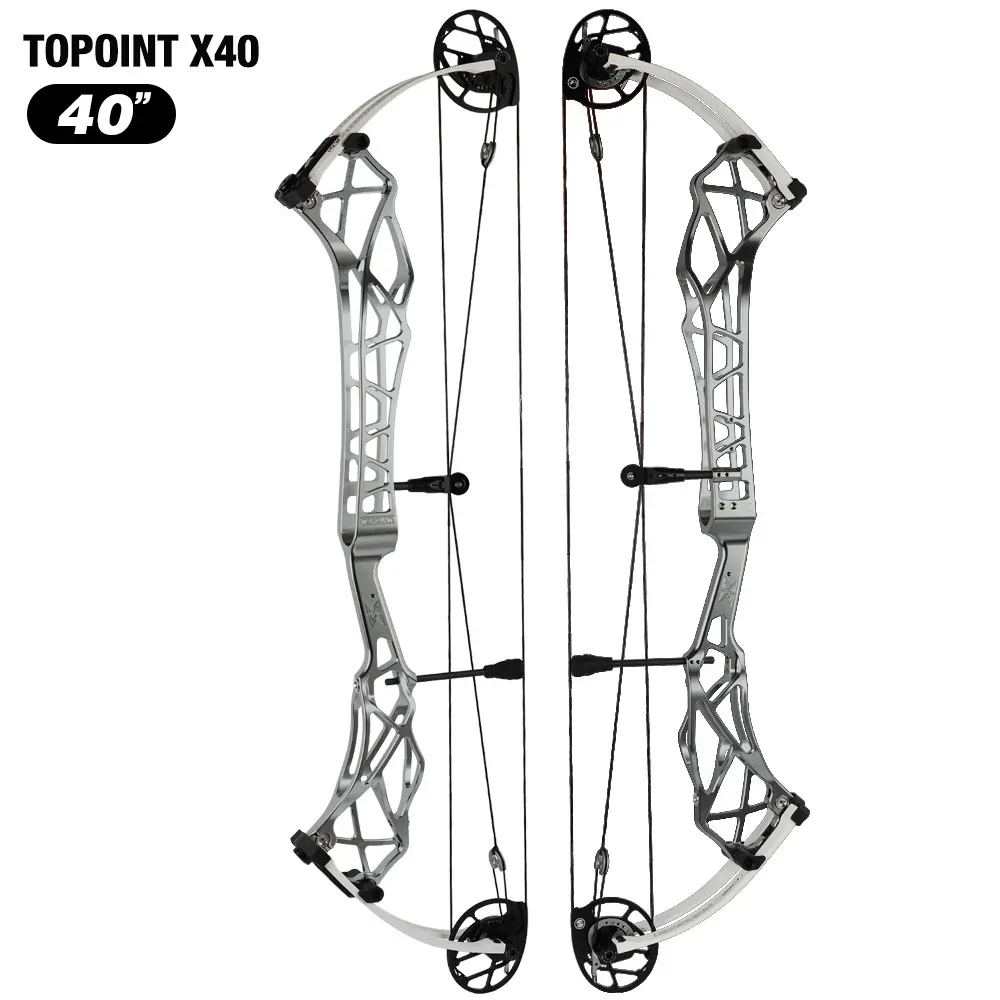

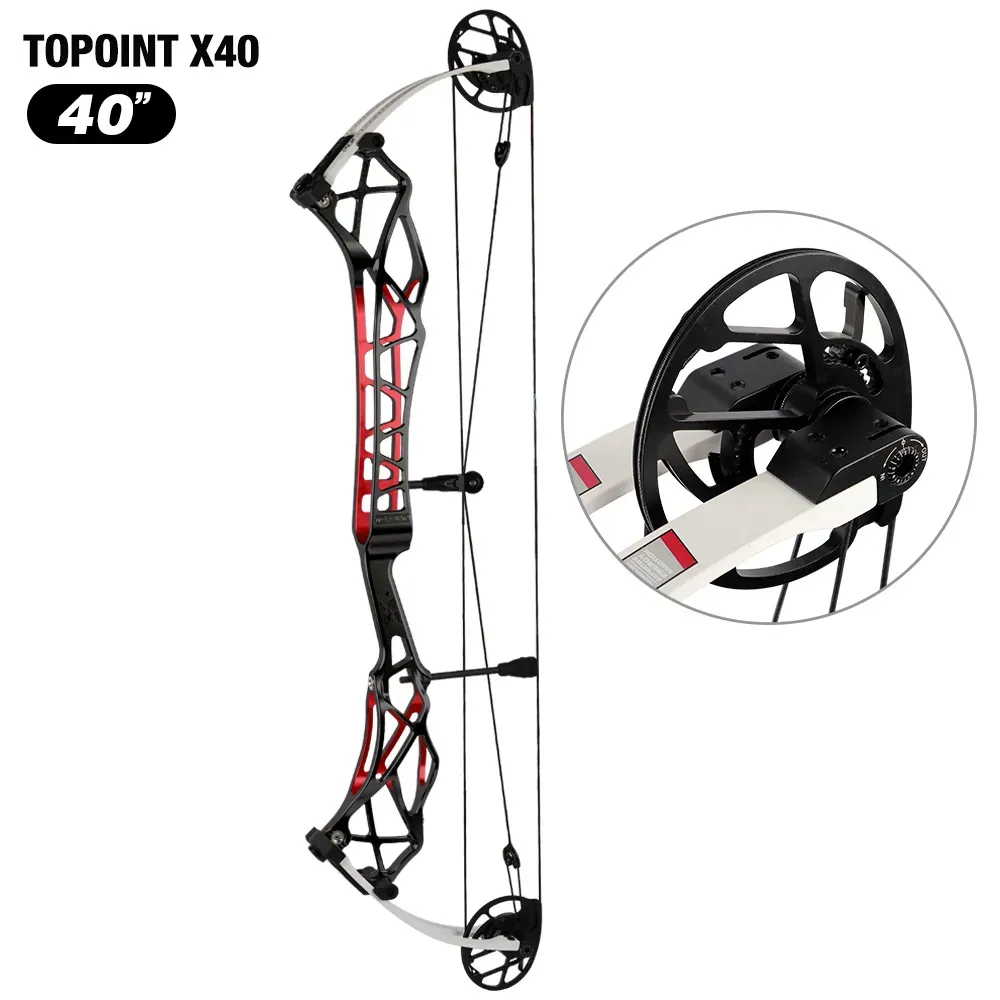

Topoint X 40 Target Compound Bow CAM Sets Move Adjustment System CNC
TOPOINT X40 Target Compound Bow – Advanced CAM Sets Move Adjustment System
🏹 330 FPS Speed | Gordon Limbs | No-Press Draw Length Adjustment
🔥 Core Features
✔ Dual CAM Systems – Two cam options cover 25-31" draw lengths (no press needed)
✔ 330 FPS IBO Speed – High-velocity performance for competition & hunting

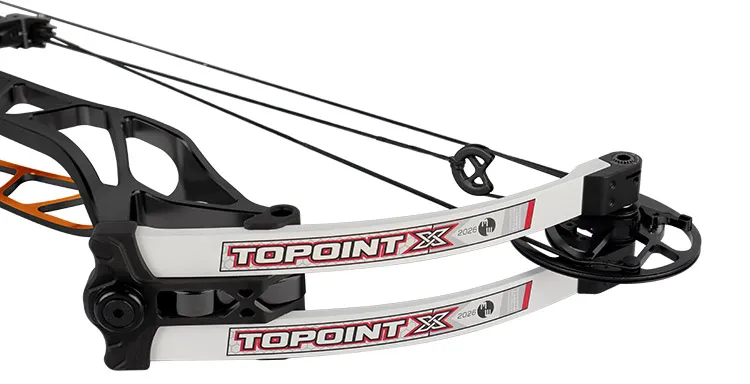

✔ Gordon Composite Limbs – 23mm width for superior stability & durability
✔ Triple Let-Off Options – 66%, 70%, or 75% (user-selectable)

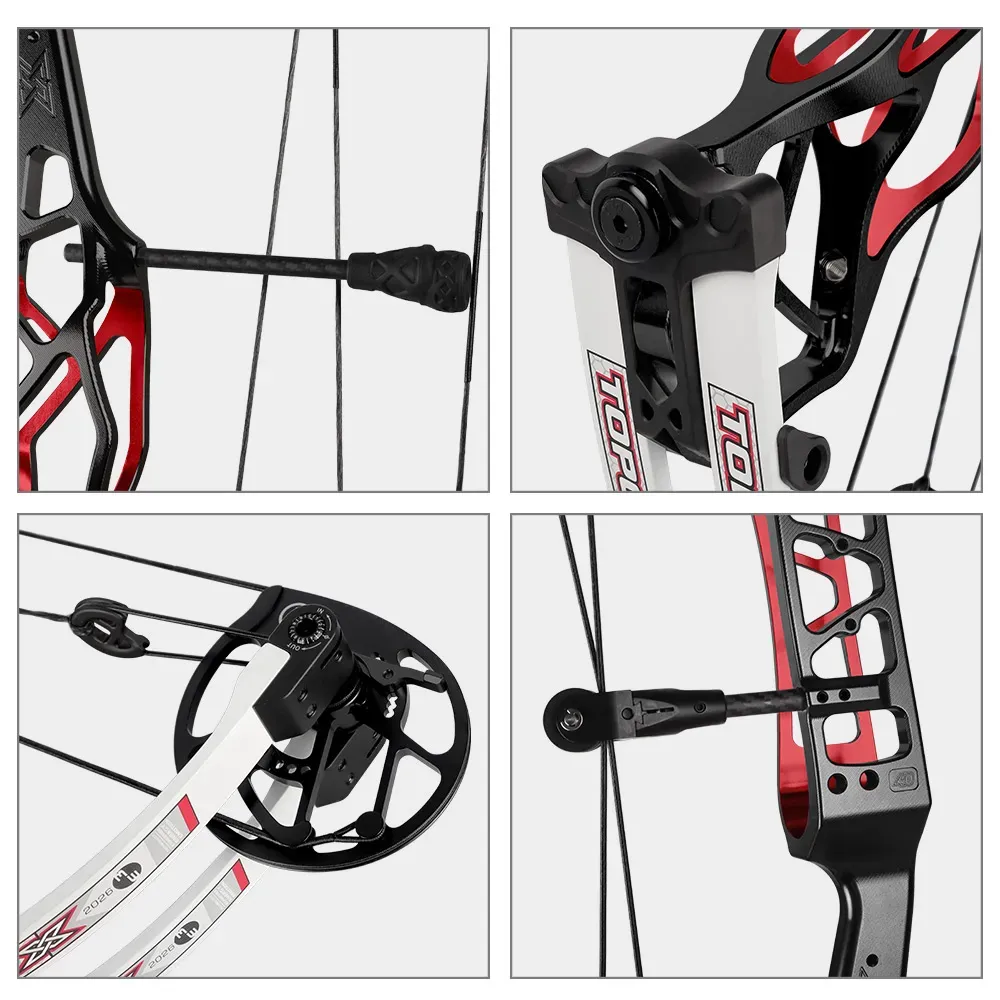

✔ CNC-Machined 7075-T6 Cams – Precision engineering for smooth performance
📏 Technical Specifications
Cam 1 Configuration:
- Draw Length: 27-31"
- Axle-to-Axle: 40" (target shooter length)
- Brace Height: 7"
- Weight: 4.85 lbs
- String: BCY-452, 63.58"
Cam 2 Configuration:
- Draw Length: 25-28"
- Axle-to-Axle: 40"
- Brace Height: 6.75"
- Weight: 4.76 lbs
- String: BCY-452, 58.66"
Shared Specifications:
- Draw Weight: 50/60lbs
- Let-Off: 66%/70%/75% (adjustable)
- Riser: 6061-T6 Aluminum CNC Machined
- Finish: Anodized (multiple colors)
- Grip: Ergonomic CNC-machined aluminum
🎯 Performance Benefits
✅ No-Press Adjustability – Change draw length in field conditions
✅ Competition-Ready Speed – 330 FPS for flat trajectories
✅ Customizable Feel – Three let-off options for personal preference
✅ Professional Stability – 40" axle-to-axle improves aiming precision
🏹 Ideal For:
- Target archery competitions
- Bowhunters needing precision
- Tournament competitors
- Left-handed archers
⚡ Why Choose the X40?
- More Adjustable – Dual cam systems cover all adult draw lengths
- Better Stability – 40" axle-to-axle vs typical 32-35" bows
- Premium Components – Gordon limbs and BCY strings
- Left-Hand Available – Rare in target compound bows
- Target-Optimized Geometry – 40" length for improved accuracy
- Aerospace Materials – 7075-T6 cams withstand competitive use
- Proven Tournament Performance – Used by national champions
📦 Package Includes:
1x Compound Bow
💡 Pro Tips
▶ For Target Shooting: Use 70% let-off for stability
▶ For 3D Courses: Choose 75% let-off for reduced fatigue
▶ String Maintenance: Wax BCY-452 every 300 shots
   |

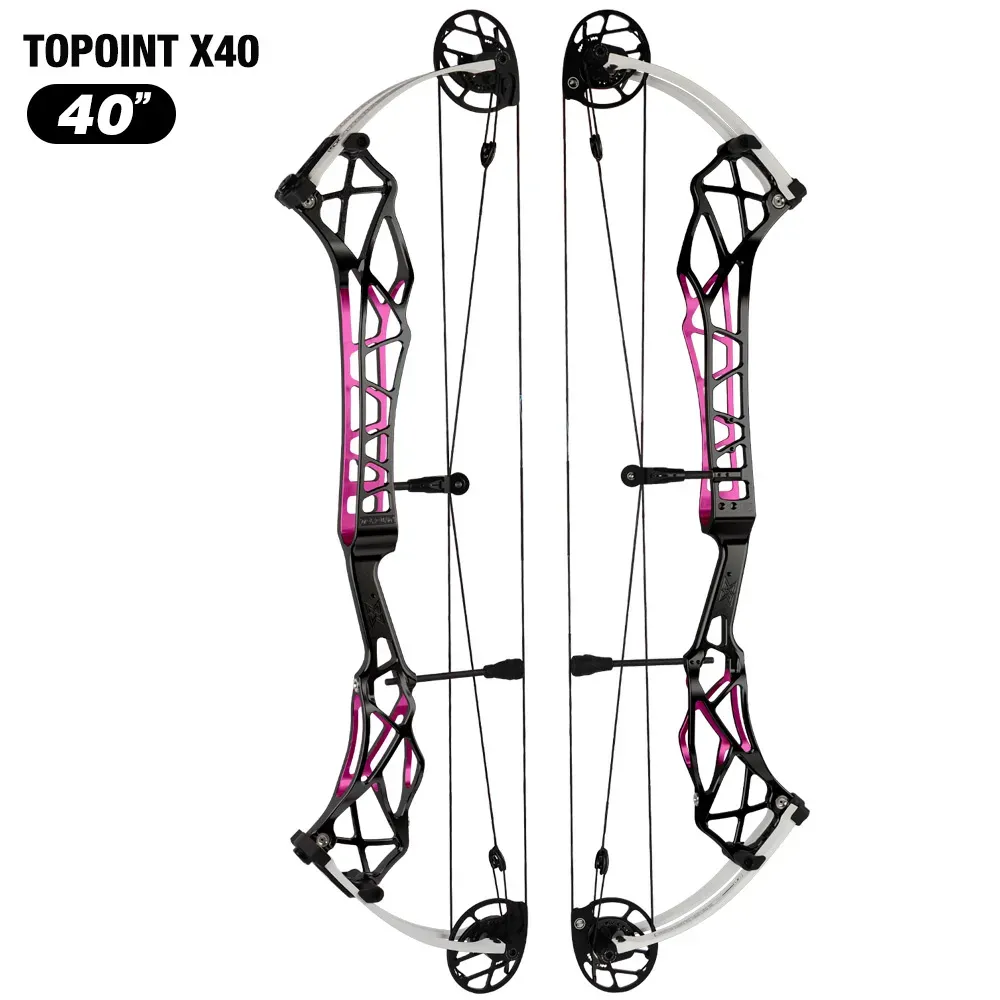

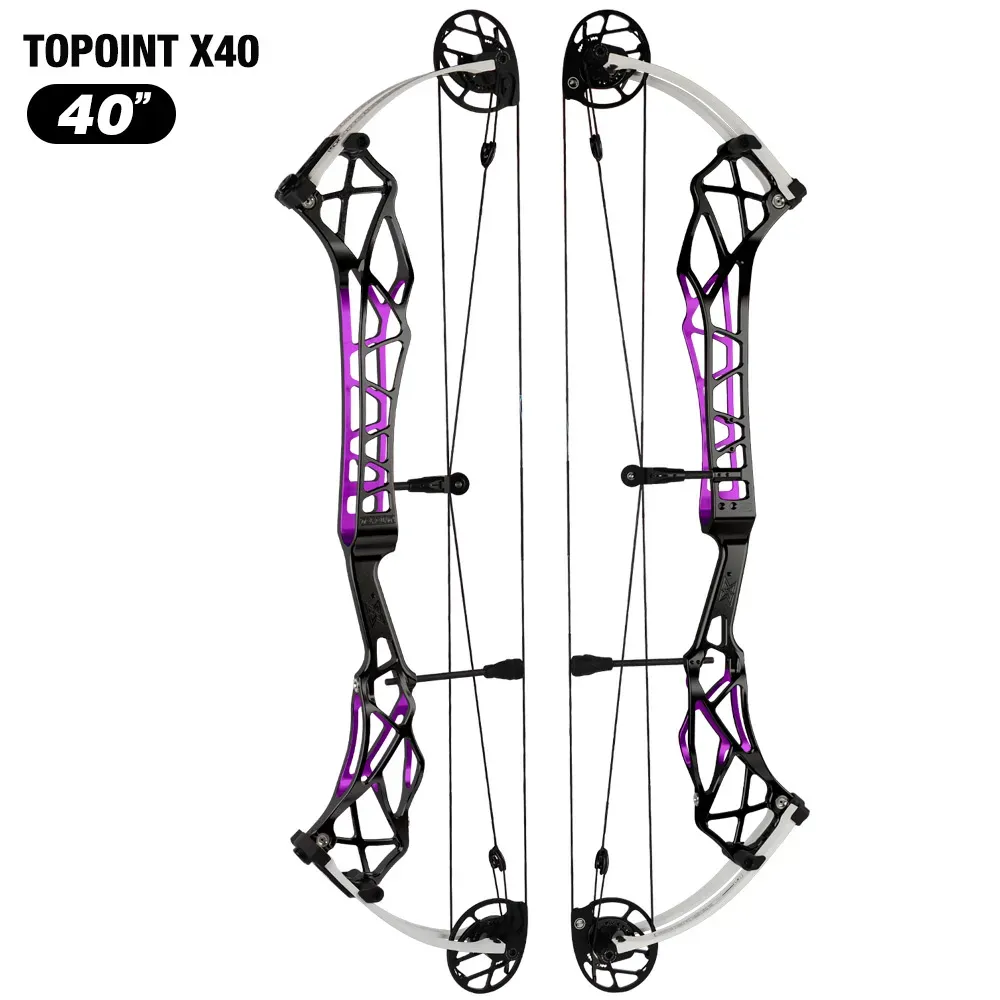

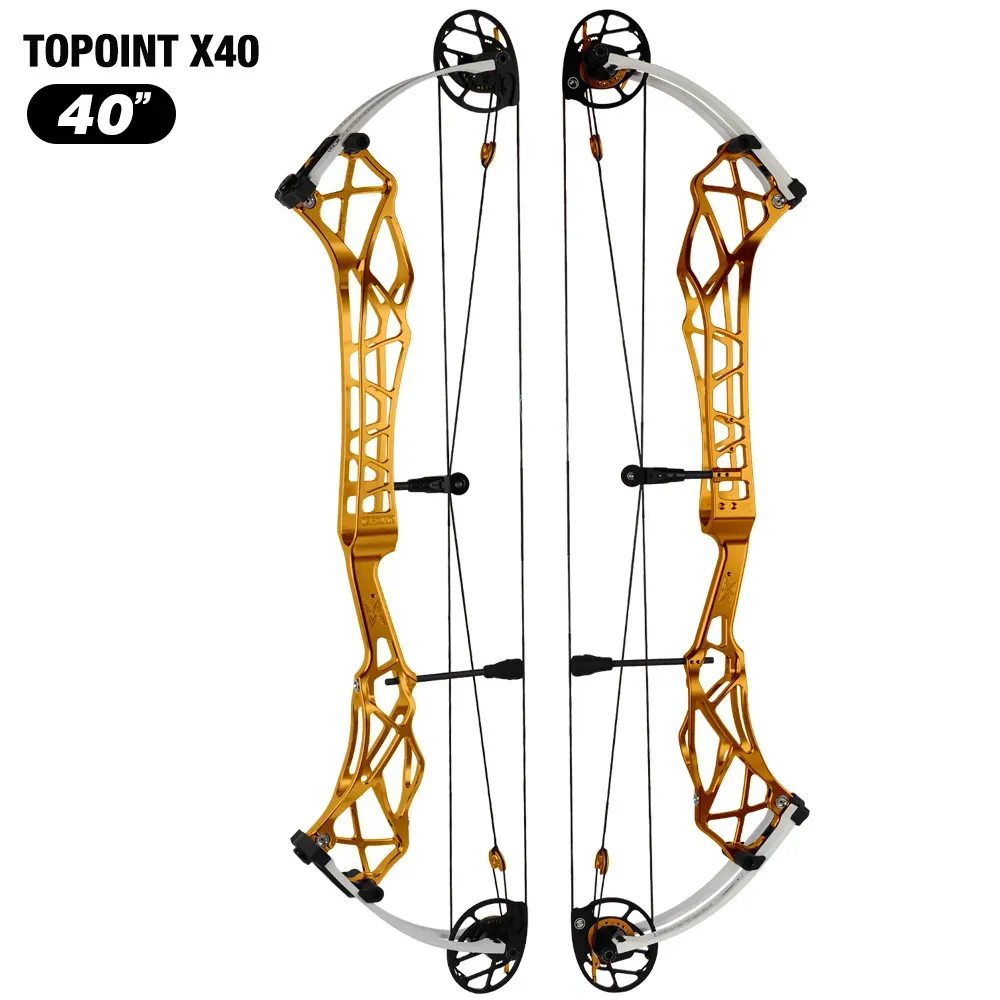

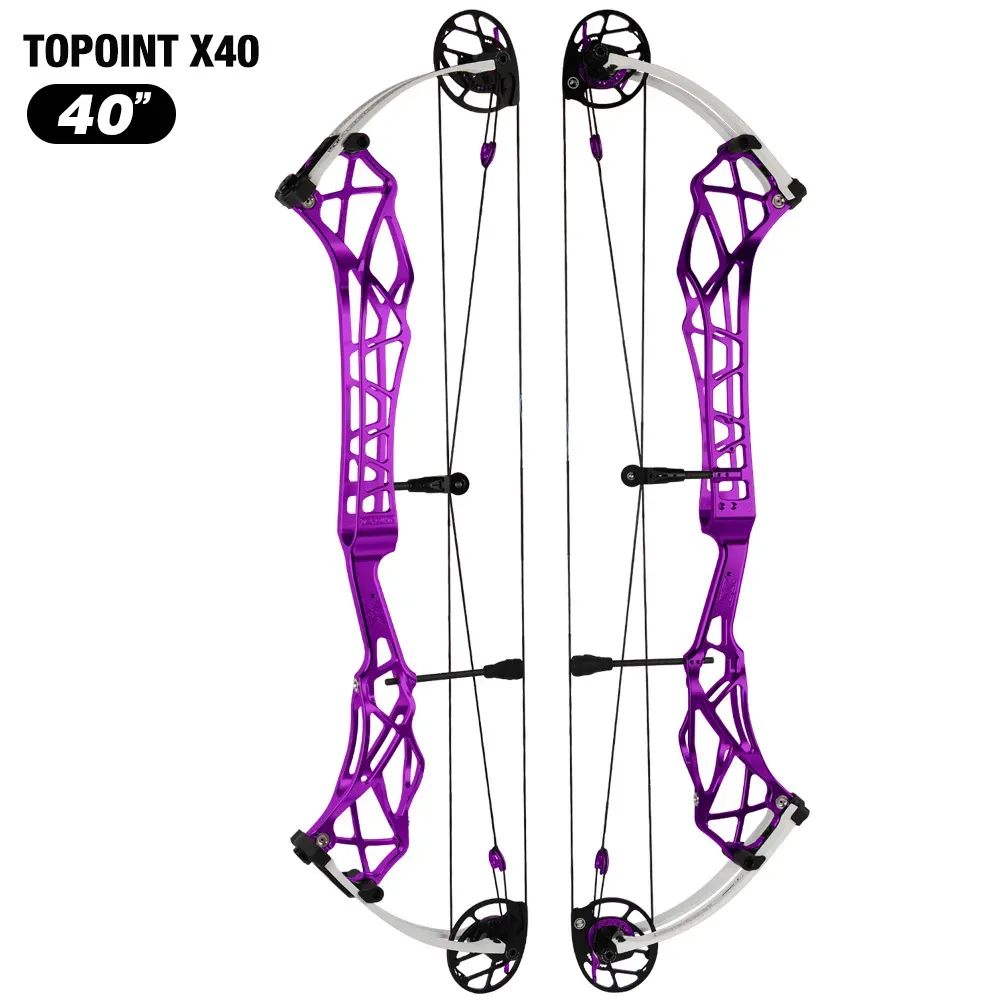

Army green/ Blue/ Golden/ Pink/ Purple/ Smoke/ Turqouise/  Gold &Black/ Blue&Black/ Purple&Black/ Pink&Black / Red&Black / Green &Black/ Orange &Black / Turqouise/ &Black/ |
 |
 |
| 40 Axis Closed Bow Window Aluminum CNC Machining |
 |
| CNC MILLING BOW RISER // Lighter Aluminum Material 6061-T6 Stronger Rigidity/Anodized Surface/Colors Select |
   |
|
Draw Length: 25-28" 27-31"

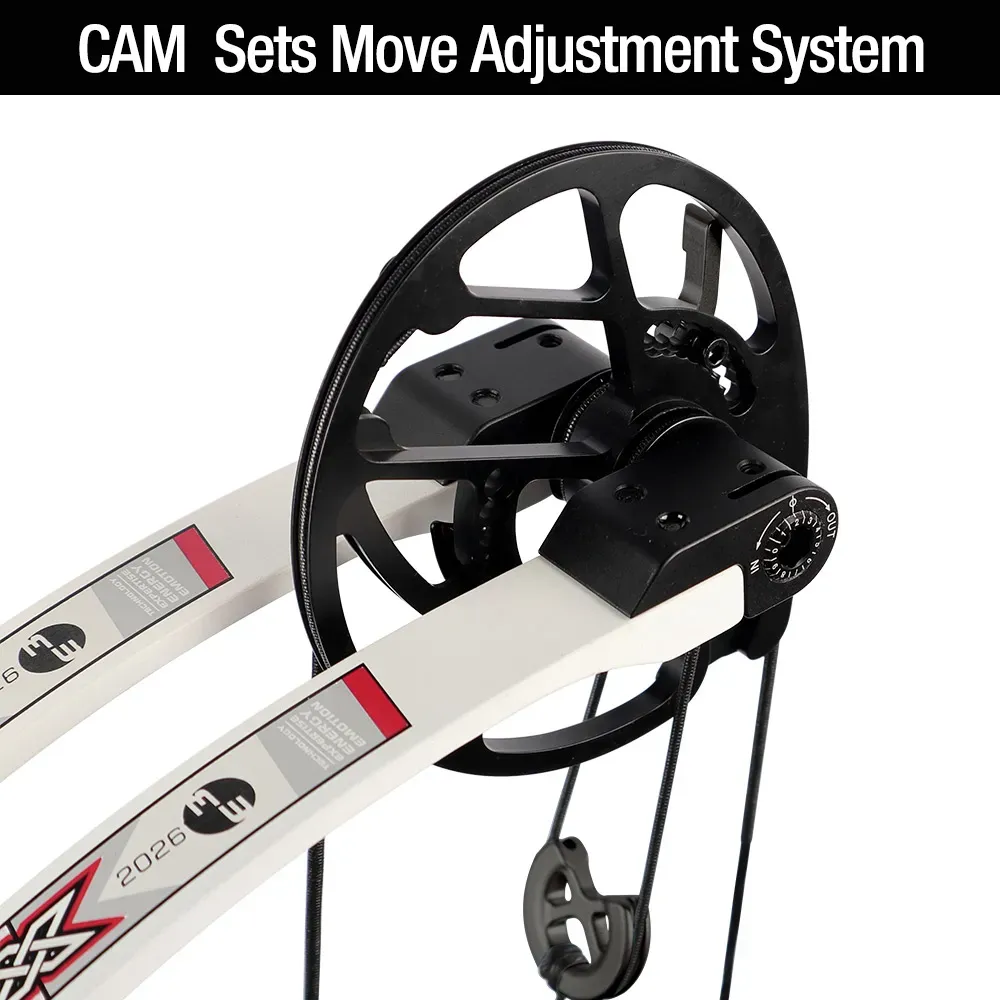

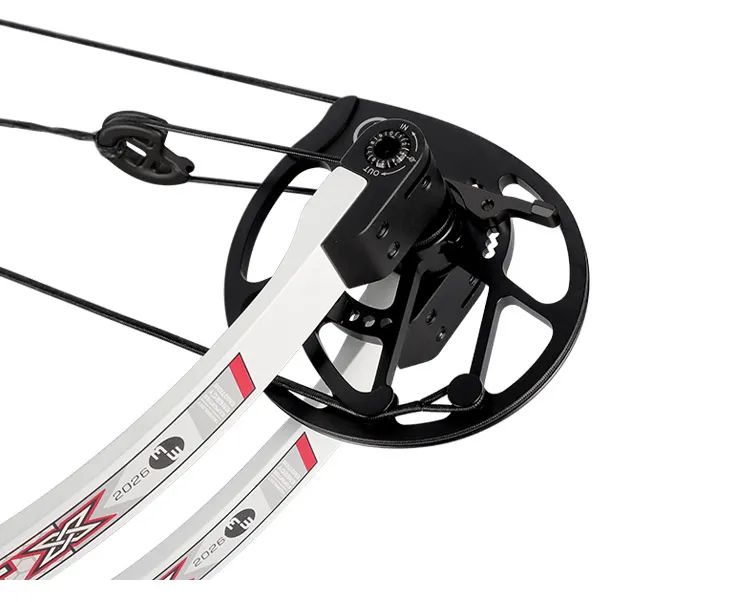

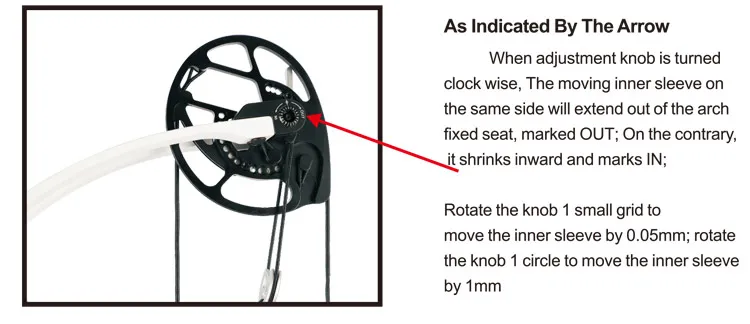

The Topoint X40 bow is equiped with a dual 'auto syncro' cam with two cam system options. The draw length adjustability range for Topoint X40 CAMI is from 27-31" for Topoint X40 CAM2,the adjustability rangeis form 25-28"To adjust draw length, loosen the fastening screw, there after,remove the draw length screw from the module and rotate the drawmodule to the desired draw length hole. Reinsert the draw length screw.snug the screw into position and retighten the fastening screw clock wise(do not over tighten). Repeat this process on the second cam makingsure both modules are set in the same draw length position. |
 |

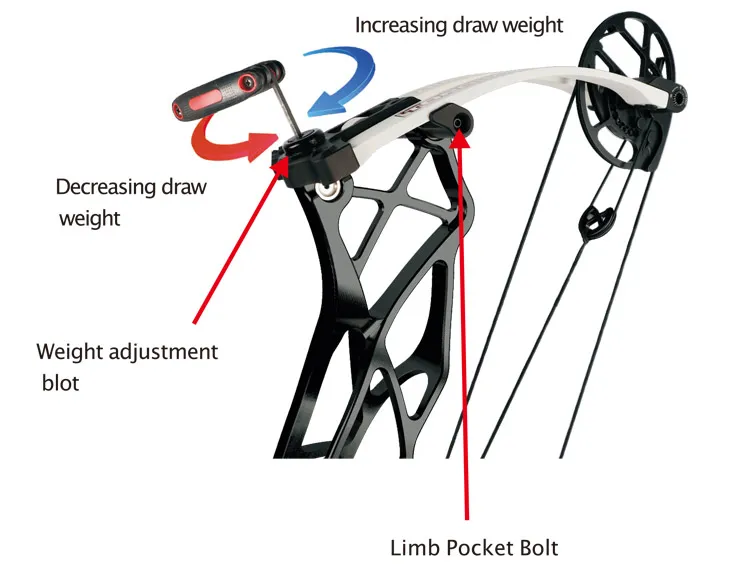

| You have the choice of draw weight from 50 bs or 60lbs. Draw weight adjustments can be made by turning the limb bolt counter.clockwise using an Allen key. lt is important to adjust both limb boltsin equal amounts. Do not exceed the recommended turns out from the maximum draw weight. turns starting from closed Maximum opening: 6 complete position |
   |

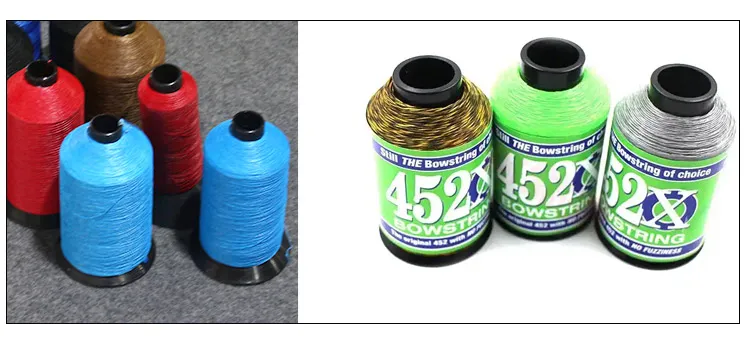

| BCY-452 BOW STRING & CABLES Imported from the best string supplies of BCY Company in USA. One of the best string supplies in the world. |
Select Bow Range Table
| Archer’s Weight | Suggested Draw Weight |
| Small Children (30-45 kg.) | 10-15 lbs |
| Larger Children (45-60 kg.) | 15-25 lbs |
| Small-Frame Female (45-60 kg.) | 25-35 lbs |
| Medium-Frame Female (60-70 kg.) | 25-35 lbs |
| Small-Frame Male (55-70 kg.) | 30-45 lbs |
| Medium-Frame Male (70-80 kg.) | 40-55 lbs |
| Large-Frame Females (70+ kg.) | 30-45 lbs |
| Large Frame Men (80+ kg.) | 45-60 lbs |
Advice for Beginner Archers
1. Start with proper instruction: It is important to learn the correct form and technique from a qualified instructor. This will help you develop good habits from the beginning and prevent potential injuries.
2. Choose the right equipment: Selecting the appropriate bow and arrows that suit your physique, strength, and skill level is crucial. Consult with an experienced archer or an archery shop to ensure you have the right gear.
3. Focus on form and posture: Practice maintaining a stable stance, proper hand placement, and consistent anchor points. Developing good form early on will greatly enhance your accuracy and consistency.
4. Take it slow: Don't rush your progress in archery. Start at a comfortable distance and gradually increase as you become more confident in your abilities.
5.Practice regularly: Consistent practice is key to improving your skills in archery. Aim for regular sessions to build muscle memory, strength, and accuracy.
6.Be patient: Archery requires time and dedication to master. Don't get discouraged if progress seems slow at first; keep practicing, stay positive, and celebrate small victories along the way.
7.Safety first: Always prioritize safety when practicing or shooting arrows. Follow all safety guidelines provided by your instructor or range operator to avoid accidents or injuries.
8.Seek feedback: Request feedback from experienced archers or coaches to identify areas of improvement in your technique or equipment setup.
9.Have fun! Remember that archery is not just about hitting bullseyes; it's also about enjoying yourself while honing a new skill. Embrace the process of learning and enjoy every shot!
The above are some suggestions for archery novices, please feel free to consult Wolfman Archery for more guidance.
Arrow Selection Guide
Wolfman Archery Arrow Selection Guide
Step 1: Identify Your Draw Length
-
Measure your arm span (fingertip to fingertip) in inches and divide by 2.5.
-
Example: 70 inches arm span ÷ 2.5 = 28-inch draw length.
Step 2: Determine Draw Weight
-
Youth/Beginner: 15-30 lbs
-
Intermediate: 30-50 lbs
-
Experienced/Target Shooting: 50-70 lbs
-
Hunting: 40-70 lbs (state regulations may apply)
Step 3: Choose Arrow Spine (Stiffness)
Arrow spine ensures the arrow flexes correctly when shot. Match your draw weight and arrow length to the appropriate spine:
| Draw Weight | Arrow Length | Recommended Spine |
|---|---|---|
| 15-30 lbs | 24-28 inches | 800-1000 |
| 30-40 lbs | 26-29 inches | 600-700 |
| 40-50 lbs | 28-30 inches | 500-600 |
| 50-60 lbs | 28-31 inches | 400-500 |
| 60-70 lbs | 29-32 inches | 300-400 |
Step 4: Select Arrow Material
-
Carbon: Lightweight, durable, fast (ideal for hunting and target shooting).
-
Aluminum: Affordable, consistent, slightly heavier (good for target practice).
-
Wood: Traditional look, best for longbows and historical archery.
Step 5: Consider Arrow Weight (GPP - Grains Per Pound)
-
Target Shooting: 5-6 GPP (grains per pound of draw weight)
-
Hunting: 6-9 GPP (heavier for better penetration)
Step 6: Choose the Right Fletching
-
Plastic Vanes: Best for compound bows and outdoor shooting.
-
Feathers: Great for traditional bows and indoor shooting.
Step 7: Pick the Right Tip
-
Field Points: Practice and target shooting.
-
Broadheads: Hunting (fixed or mechanical blades).
For personalized recommendations, visit Wolfman Archery or contact our experts!
